ALCo C-628
All delivered in the Lightning Stripe scheme. Units #601 and #605-618 had single sand fillers. Units #602-604 had dual sand fillers. As far as we can tell, only #602 and #606 received the small nose shield during a repaint. All others retained the larger nose shield. All went to NdeM in 1978.
| Delaware & Hudson Railway ALCo C-628 Roster (Class ARF-27) | |||||||
|---|---|---|---|---|---|---|---|
| No. | Model | Builder | Serial | Built | Retired | Notes | Photos |
| 601 | C-628 | ALCo | 3373-1 | 3/1964 | sold 12/1978 | ||
| 602 | C-628 | ALCo | 3373-2 | 3/1964 | sold 12/1978 | Link | |
| 603 | C-628 | ALCo | 3373-3 | 3/1964 | sold 12/1978 | ||
| 604 | C-628 | ALCo | 3373-4 | 3/1964 | sold 12/1978 | ||
| 605 | C-628 | ALCo | 3373-5 | 4/1964 | sold 12/1978 | ||
| 606 | C-628 | ALCo | 3373-6 | 4/1964 | sold 12/1978 | Link | |
| 607 | C-628 | ALCo | 3373-7 | 5/1964 | sold 12/1978 | ||
| 608 | C-628 | ALCo | 3373-8 | 5/1964 | sold 12/1978 | ||
| 609 | C-628 | ALCo | 3373-9 | 5/1964 | sold 12/1978 | Link | |
| 610 | C-628 | ALCo | 3407-1 | 5/1965 | sold 12/1978 | ||
| 611 | C-628 | ALCo | 3407-2 | 5/1965 | sold 12/1978 | ||
| 612 | C-628 | ALCo | 3407-3 | 5/1965 | sold 12/1978 | ||
| 613 | C-628 | ALCo | 3407-4 | 5/1965 | sold 12/1978 | ||
| 614 | C-628 | ALCo | 3407-5 | 5/1965 | sold 12/1978 | ||
| 615 | C-628 | ALCo | 3407-6 | 5/1965 | sold 12/1978 | ||
| 616 | C-628 | ALCo | 3407-7 | 5/1965 | sold 12/1978 | ||
| 617 | C-628 | ALCo | 3407-8 | 5/1965 | sold 12/1978 | ||
| 618 | C-628 | ALCo | 3407-9 | 5/1965 | sold 12/1978 | ||
| ALCo C-628 Data | |
|---|---|
| Engine | 16-cylinder 251C |
| Trucks | C-C |
| Truck Type | Trimount |
| Fuel (gals.) | |
| Sand (cu. ft.) | |
| Weight (lbs.) | #601-609 - 395,800 #610-618 - 388,800 |
| Horsepower | 2,750 hp |
| Traction Motors | GE 752 |
| Tractive Effort | 103,000 lbs. |
| Gearing | 74:18 |
D&H 602

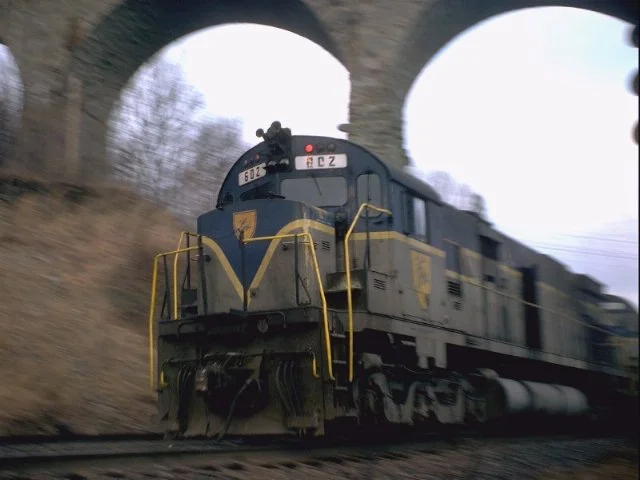

D&H Unit #602 making time under Starrucca Viaduct. Photo by Jean-Louis Simonet.
D&H 606
C628 #606 rests at Mechanicville in April 1972 between tasks. Bill Mischler photo
D&H 609

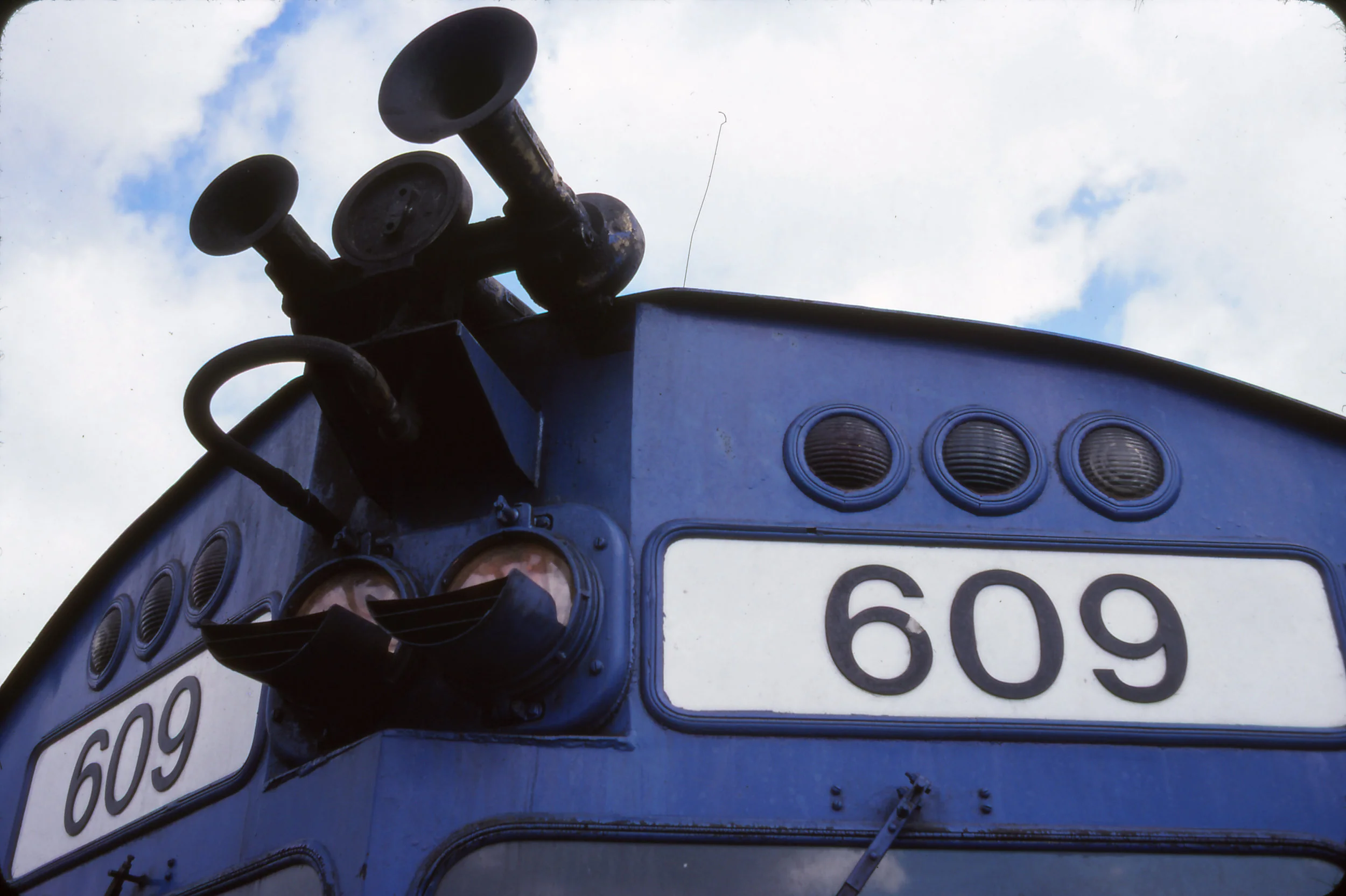

The front of #609 in the 1970s. The Garbely Publishing Company collection
