GE U33C

#751-753 were originally EL #3301-3303, swapped to the D&H for SD45s #801-803. The U33Cs retained the EL scheme for a while, except the maroon was repainted D&H blue. They were swapped back in late December of 1975, prior to the Conrail merger and the pending demise of Erie Lackawanna. All three units were outbound in Oneonta on Christmas Day. These three U33Cs received a fresh coat of EL maroon and gray prior to the start up of Conrail.

#650-656 were ex-Conrail locomotives. Guilford renumbered #758, #759, #761, and #762 to #658, #659, #661, and #662 (respectively) in 1985. All original locos were painted in the lightning stripe scheme, and #758 was the only U33C to receive the all blue and yellow nose stripes. The ex-Conrail locomotives retained their Conrail blue for some time. Unit #655 was converted to a Super 7 for Mexico by GE's Montreal plant.

U33C #757 burned with the Binghamton roundhouse and was rebuilt by M-K. They replaced the long hood with the later style of the center door latches instead of the customary one at the top and one at the bottom. It also returned with the nose Gyralite signal light and the newer AAR control stand. #760 and #761 also received the Gyralite, but from the D&H's own shop forces. The U33Cs were still too new to be rebuilt, and therefore only the three listed above received the nose Gyralite signal light.

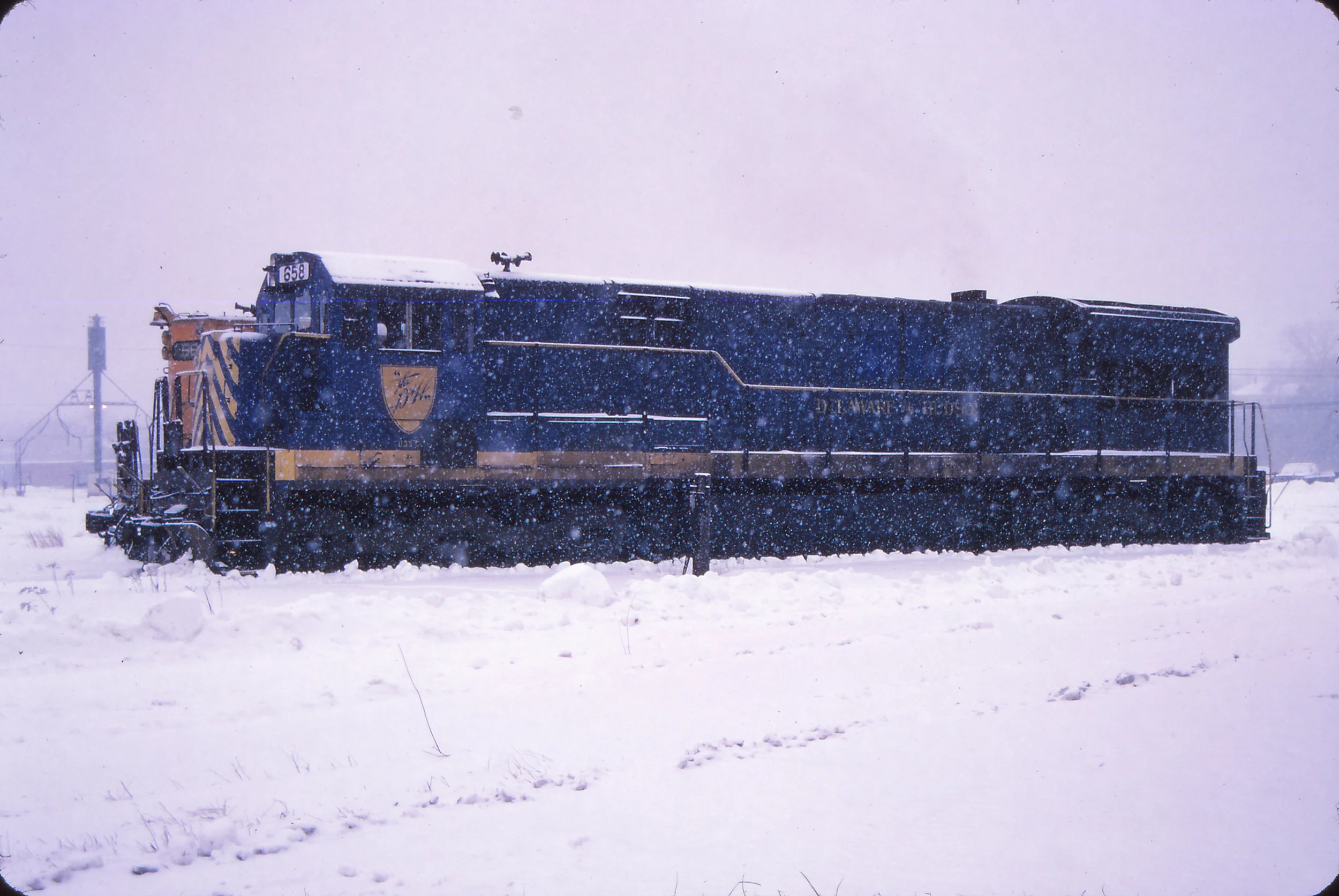

In December of 1987, D&H U33C 758 has been renumbered to 658 by Guilford, but still wears its coat of D&H blue. It was the only U33C to be so painted by the D&H. It is seen here in the former Maine Central Rigby Yard in Portland, ME. Brian E. Loss photo, The Garbely Publishing Company collection

Delaware & Hudson Railway
GE U33C Roster (Class GRF-33)
No.ModelBuilderSerialBuiltRetiredNotesPhotos
650U33CGE366702/19681988Built as PC #6540, to CR #6845, to D&H in 1985.
651U33CGE366813/19681988Built as PC #6551, to CR #6856, to D&H in 1985.
652U33CGE366853/19681988Built as PC #6555, to CR #6860, to D&H in 1985.
653U33CGE366873/19681988Built as PC #6557, to CR #6862, to D&H in 1985.
654U33CGE366893/19681988Built as PC #6559, to CR #6864, to D&H in 1985.
655U33CGE368638/19681988Built as PC #6559, to CR #6864, to D&H in 1985. Later rebuilt to Super 7 for Mexico by GE Montreal plant.Link
656U33CGE368653/19681988Built as PC #6561, to CR #6866, to D&H in 1985.
751U33CGE367857/196812/1975Built as EL #3301, to D&H in 3/1969 in trade for SD45 #801, traded back to EL in 12/1975.
752U33CGE367867/196812/1975Built as EL #3302, to D&H in 3/1969 in trade for SD45 #802, traded back to EL in 12/1975.
753U33CGE367877/196812/1975Built as EL #3303, to D&H in 3/1969 in trade for SD45 #801, traded back to EL in 12/1975.Link
754U33CGE376169/197010/1988Sold to GE for Super 7 program but scrapped in mid-1990s by GE Erie.
755U33CGE376179/197010/1988Scrapped by Guilford in Colonie.
756U33CGE376189/197010/1988Sold to GE for Super 7 program but scrapped in mid-1990s by GE Erie.
757U33CGE3761911/197010/1988Burned in Binghamton roundhouse fire in 1974, rebuilt 10/1974 by M-K.
758U33CGE3762011/197010/1988Only U33C painted solid blue with yellow stripes. Sold to GE for Super 7 program, converted by GE's Montreal plant, and sold to Mexico.
759U33CGE3762111/197010/1988Sold to GE for Super 7 program, converted by GE's Montreal plant, and sold to Mexico.Link
760U33CGE3762211/197010/1988Rebuilt by M-K in 1975. Scrapped by Guilford in Colonie.
761U33CGE3762312/197010/1988Sold to GE for Super 7 program but scrapped in mid-1990s by GE Erie.
762U33CGE3762412/197010/1988Sold to GE for Super 7 program. Sent to GE Montreal for conversion, but program stopped before work commenced. Scrapped in mid-1990s by GE Montreal.

GE U33C Data
Engine16-cylinder FDL
TrucksC-C
Truck TypeAdirondack or
General Steel Castings (GSC)
Fuel (gals.)3,000
Sand (cu. ft.)60
Weight (lbs.)363,000
Horsepower3,300 hp
Traction MotorsGE 752
Tractive Effort
Gearing74:18


D&H 655
Fresh from Conrail and the D&H/Guilford paint shop, the 655 sits at Kenwood yard, Albany, NY in December 1985. Bill Mischler photo

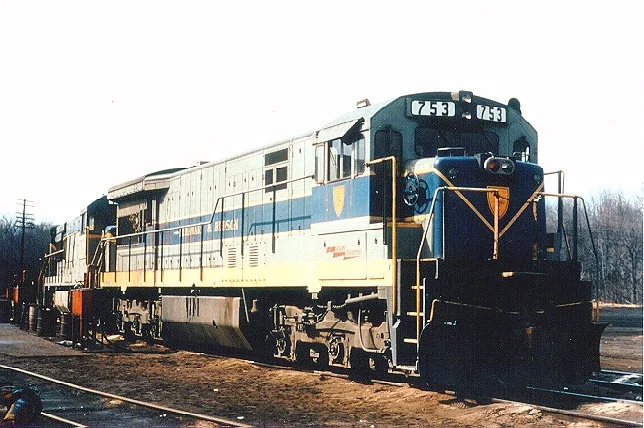

D&H 753
U33C 753 is shown in its "Delaware and Hudsonized" Erie-Lackawanna paint scheme at Mechanicville, NY, in April 1972. This photo was taken not long after this locomotive, and its sisters, 751 and 752 arrived on the D&H from the Erie-Lackawanna, in exchange for D&H SD45s 801, 802, and 803. Bill Mischler photo

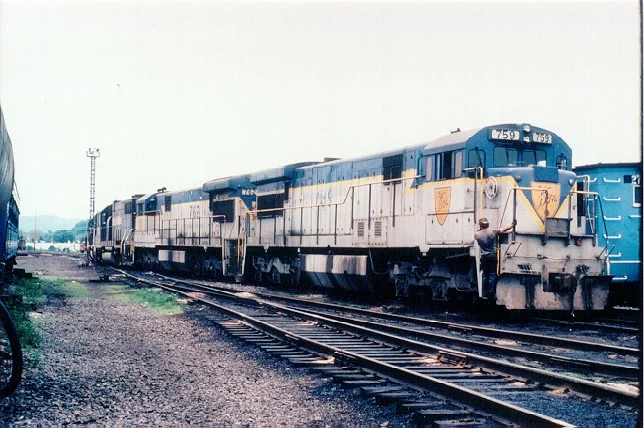

D&H 759
U33C 759 and sister 762 are shown pausing at Mechanicville between assignments in May 1985. Bill Mischler photo
